The combination of rigid PVC (polyvinyl chloride) plastic and closed-cell PET (polyethylene terephthalate) foam provides unique properties that allow the material to be used in a variety of industries and applications.
Lightweight
The PET foam core significantly reduces the overall weight of the material, making it an excellent choice for applications where weight reduction is a key factor.
High Durability
PVC is known for its resistance to wear, abrasion, and impact, while PET foam adds structural integrity without the extra weight.
Chemical and Moisture Resistance
PVC is naturally resistant to moisture and chemicals, which makes this composite material ideal for environments with high humidity. The PET foam core is also water- and chemical-resistant, preventing it from degrading over time.
Specifications
| Facing | PVC (Polyvinyl Chloride) Plastic. (Thickness: 2.0-5.0mm) |
| Core | PET (Polyethylene terephthalate) foam. (Density: 60-300kg/m³) |
| Composite Method | Unsaturated polyester adhesives. |
| Thickness | 10-150mm. |
| Size | 1220X2440mm or customized. |

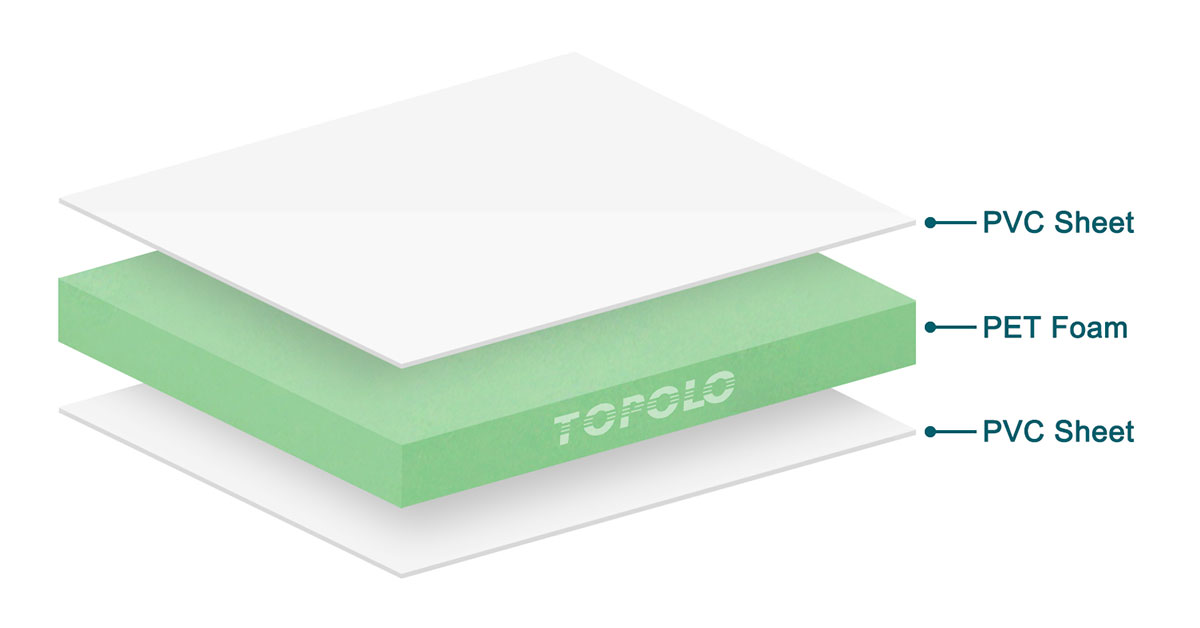

Structural Diagram

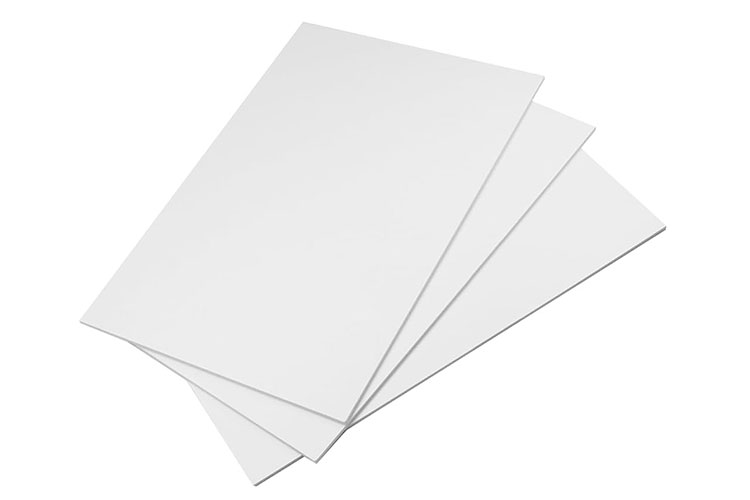

PVC Facing
Hard PVC plastic sheet has the characteristics of good chemical stability, corrosion resistance, high hardness, aging resistance, fire retardant, insulation, smooth surface, no water absorption, no deformation, easy processing, etc. It is an excellent thermoforming material and can replace some stainless steel and other corrosion-resistant synthetic materials.
PVC Sheet Properties
| Performance Parameter | Value Range | Unit |
|---|---|---|
| Density | 1.3 – 1.45 | g/cm³ |
| Tensile Strength | 40 – 50 | MPa |
| Flexural Strength | 50 – 70 | MPa |
| Elongation at Break | 20 – 40 | % |
| Surface Hardness | Shore D 80 – 85 | — |
| Heat Distortion Temperature | 70 – 80 | °C |
| Vicat Softening Temperature | 75 – 85 | °C |
| Glass Transition Temperature (Tg) | 80 – 90 | °C |
| Melting Point | No clear melting point, decomposition around 200°C | °C |
| Electrical Resistivity | 10¹³ – 10¹⁵ | Ω·cm |
| Dielectric Strength | 30 – 50 | kV/mm |
| Limiting Oxygen Index (LOI) | 45 – 50 | % |
| Self-ignition Temperature | 450 | °C |
| Thermoforming Temperature | 150 – 200 | °C |
PET Foam Core
PET foam is a durable, lightweight and recyclable plastic. It excels in insulation, mechanical strength and moisture resistance, making it ideal for structural panels where durability is required.
Common Applications

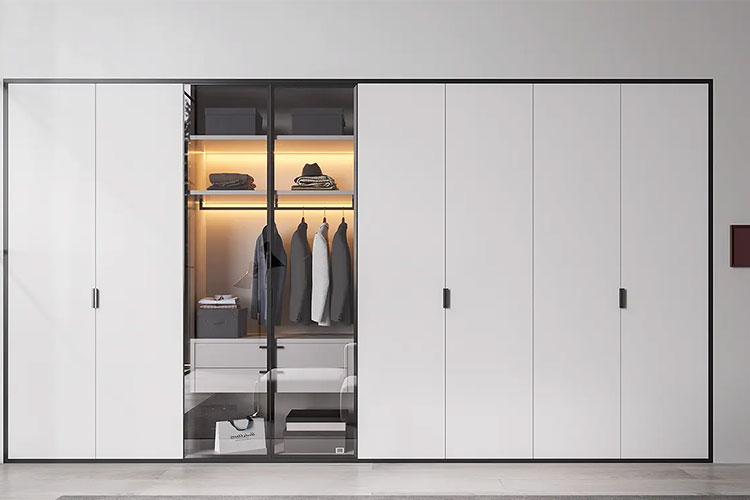

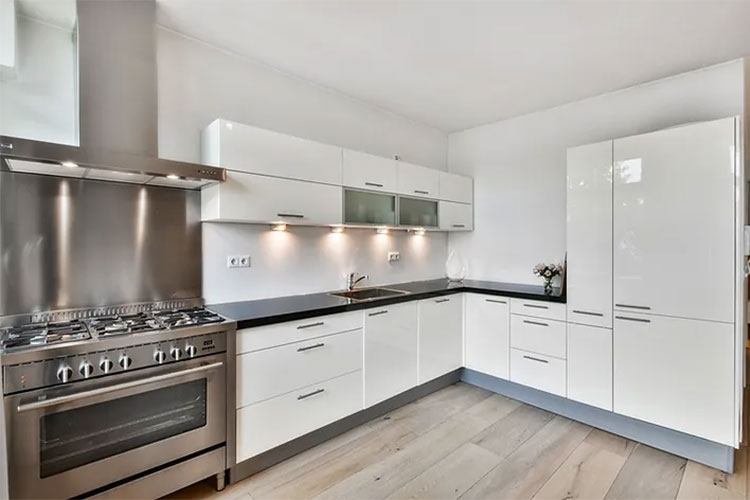

The most common application of PVC Facing PET Foam Sandwich Panels is interior decoration or furniture, such as:
- Partitions
- Ceilings
- Bathroom wall panels
- Door panels
- Cabinets
- Storage boxes
- Tabletops, etc.
